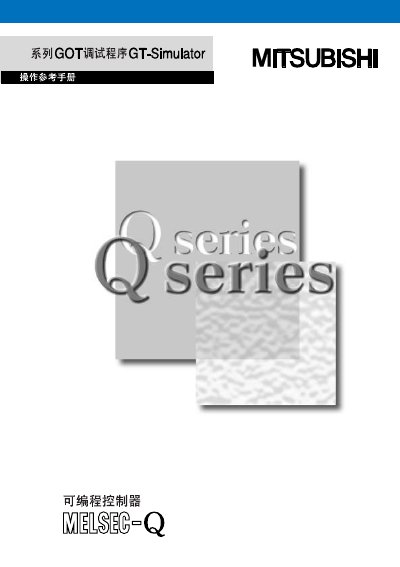

Mitsubishi Electric MELSEC-Q1 GT Simulator User Manual

This manual explains the system configuration, installation, screen creation, and operation of the GT Simulator for MELSEC‑Q1.

Brand: Mitsubishi
Category: Automation control Equipment
Document type: User Manual
Language: Japanese
Pages: 72
File format: PDF
File size: 1.1 MB
Updated: 03 October, 2026
MD5 checksum: 563E4C59C6558238B494E8CB75466201
PDF: Mitsubishi Electric MELSEC-Q1 GT Simulator User Manual PDF

About this manual

The GT Simulator manual provides detailed instructions for setting up and using the software that emulates a GOT screen on a personal computer. It covers safety notices, required PC specifications, installation steps, and how to create and edit screens with GT Designer.

The document also lists supported GOT models, their display specifications, functional limitations, and troubleshooting guidance. Appendices give examples of sample data modification and backup procedures. This manual is written in Japanese.

What's inside

Overview
System Configuration
Specifications
Screen Configuration
Operation Method
Functions
Soft Element Monitoring
Troubleshooting and Removal
Appendix

Specifications

Supported GOT models	A985GOT, A97GOT, A960GOT, A95GOT
Display colors	256 colors
Maximum storage	8 M
Connection type	Direct CPU connection

Frequently asked questions

What minimum hard‑disk space is required to run GT Simulator?

The software needs at least 50 MB of free disk space.

How much RAM must the PC have to use GT Simulator?

The PC should have at least 32 MB of memory.
