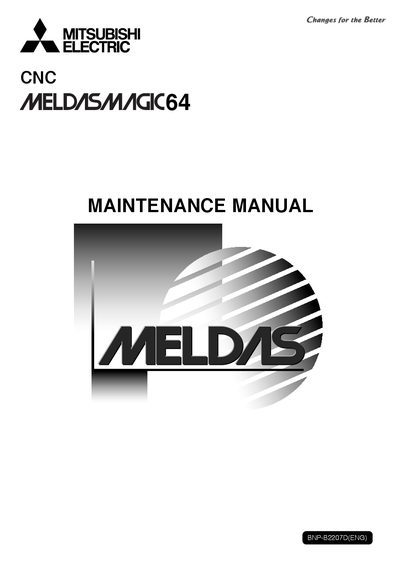

Mitsubishi Electric MELDASMAGIC64 Maintenance Manual BNP-B2207D(ENG)64

Mitsubishi Electric maintenance manual with safety, installation, wiring, adjustment, troubleshooting and service procedures for the MELDASMAGIC64 system…

Brand: Mitsubishi Electric
Category: Automation control Equipment
Document type: Service Manual
Language: English
Pages: 45
File format: PDF
File size: 583 KB
Published: 06 October, 2026
Updated: 06 October, 2026
MD5 checksum: 775BAB5D734D1EC434E65A05A7EE9E30
PDF: Mitsubishi Electric MELDASMAGIC64 Maintenance Manual BNP-B2207D(ENG)64 PDF

About this manual

This manual covers the MELDASMAGIC64 CNC controller, including the ISA NC Card and PCI NC Card options. It provides detailed safety precautions, system requirements, wiring guidelines, adjustment steps, and fault handling procedures for technicians and qualified personnel.

The document also contains a comprehensive troubleshooting section, part‑replacement instructions, and disposal guidelines, along with specifications for operating temperature, power consumption, and physical dimensions of the controller and its modules.

What's inside

Outline
General Specifications
System Configuration
Daily Maintenance and Periodic Inspection
Troubleshooting
Unit Replacement
Safety Precautions
Wiring Guidelines
Adjustment Procedures
Disposal and Environmental Information

Specifications

Ambient temperature (operation)	0~55°C
Power voltage (5V)	±2%
Heating value (controller)	19W
Unit size (Base I/O unit)	220×168×35 mm

Frequently asked questions

Which Windows operating systems are supported for the MELDASMAGIC64 controller?

Supported OS include Windows 95, 98, 98SE, NT Workstation 4.0, 2000, and XP.

What safety precaution should be taken before wiring the controller?

The power must be turned off, wait at least 15 minutes, and verify voltage with a tester before starting any wiring work.
