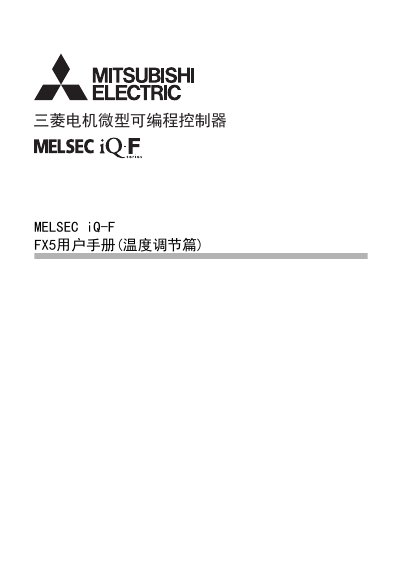

Mitsubishi Electric MELSEC iQ-F FX5 Temperature Control User Manual

About this manual

This document is the user manual for the Mitsubishi Electric MELSEC iQ-F FX5 series programmable controller, specifically focusing on temperature regulation modules. It covers essential usage information including safety precautions, installation guidelines, wiring procedures, and operational instructions. This manual is written in Chinese.

What's inside

• Safety Precautions
• Installation Precautions
• Wiring Precautions
• Startup and Maintenance
• Disposal and Transport
• Introduction
• System Configuration
• Parameter Setting
• Programming
• Troubleshooting

Frequently asked questions

What is the purpose of this manual?

This manual explains usage content for temperature control modules in the iQ-F series.

What is the minimum wire cross-section required for grounding?

You must use a wire of 2mm² or larger for Class D grounding.

What is the minimum distance required between power/control cables and high voltage lines?

Power, control, and communication cables must be kept at least 100mm away from main circuits or high-voltage wires.
