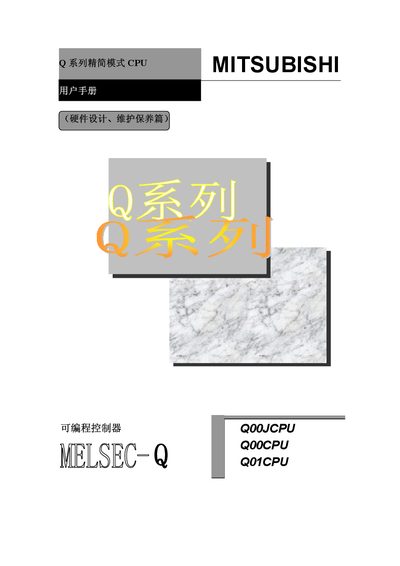

Mitsubishi Electric Q Series Simplified Mode CPU User Manual

About this manual

This document serves as a user manual for the Mitsubishi Electric MELSEC-Q series PLC controllers, specifically focusing on the Q00JCPU, Q00CPU, and Q01CPU models in simplified mode. It provides essential guidance on hardware design considerations, installation procedures, and operational safety. This manual is written in Chinese.

What's inside

• Safety Precautions
• Hardware Design Considerations
• Installation Precautions
• Wiring Precautions
• Operation and Maintenance
• Disposal Precautions
• System Configuration
• CPU Module Specifications
• Power Supply Module
• Revision History

Frequently asked questions

What is the minimum distance required between control cables and power lines?

Control lines and communication cables must be separated from main circuits and power lines by at least 100mm to prevent noise.

How far must a mobile phone be kept from the PLC device during operation?

You must keep wireless communication devices like mobile phones more than 25cm away from the PLC device to prevent malfunction.
