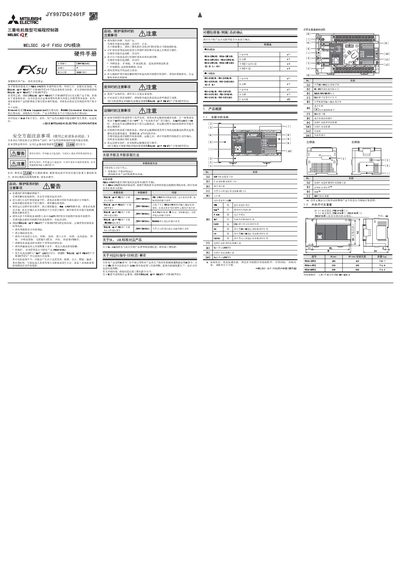

This manual covers the hardware specifications, dimensions, installation procedures, and wiring details for the Mitsubishi Electric MELSEC iQ-F FX5U CPU module.
This document serves as a hardware manual for the MELSEC iQ-F FX5U CPU module. It provides essential information regarding component names, physical dimensions, mounting methods, and external wiring examples. The content is extracted from the main MELSEC iQ-F FX5U User Manual (Hardware Edition) and should be read in conjunction with it before use. This manual is written in Chinese.
| Operating Temperature | -20 to 55 C |
|---|---|
| Storage Temperature | -25 to 75 C |
| Operating Humidity | 5 to 95% RH, no condensation |
| Insulation Resistance | 10 MΩ or more |
Read the MELSEC iQ-F FX5U User Manual (Hardware Edition) and related manuals to understand equipment knowledge, safety information, and precautions.
The package includes the CPU module, a dust cover, and manuals in Japanese/English and Chinese.
The product must be installed on a flat surface using a DIN rail or mounting screws to secure it firmly.
