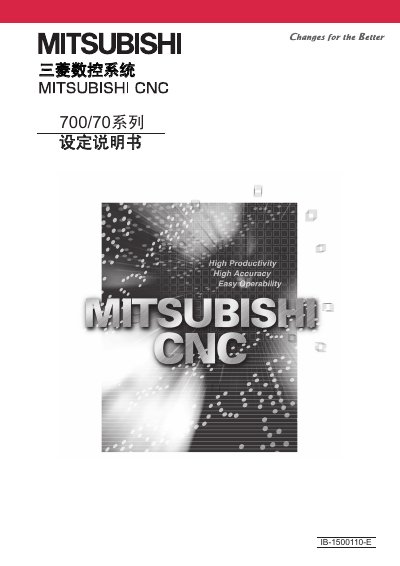

Mitsubishi Electric CNC 700/70 Series Setup Instructions

About this manual

This document serves as a guide for setting up and configuring the Mitsubishi CNC 700/70 series. It covers initial commissioning steps, including hardware configuration, data backup, parameter input, and ladder program entry. The manual assumes all optional functions are installed but advises users to verify specific configurations via machine manufacturer specifications.

The document also details procedures for replacing hardware components such as batteries, cooling fans, backlights, control units, displays, keyboards, DX units, hard disk units, and CF/IC cards for both the 700 and 70 series. Additionally, it provides a comprehensive list of alarms and troubleshooting steps. This manual is written in Japanese.

What's inside

• Commissioning Steps
• Hardware Replacement
• Alarm Descriptions
• Parameter Settings
• Troubleshooting

Frequently asked questions

What is the primary purpose of this manual?

This document serves as a guide for alarms and parameters when using the Mitsubishi CNC700/70 series.

What should be done if a low battery voltage warning occurs?

Users must save programs and parameters via an input/output device before replacing the battery, as data may be damaged.

What is the minimum number of NC axes required for setting drive unit switch numbers?

The example provided in the text assumes a setup with 3 NC axes (X/Y/Z) and 1 spindle.
