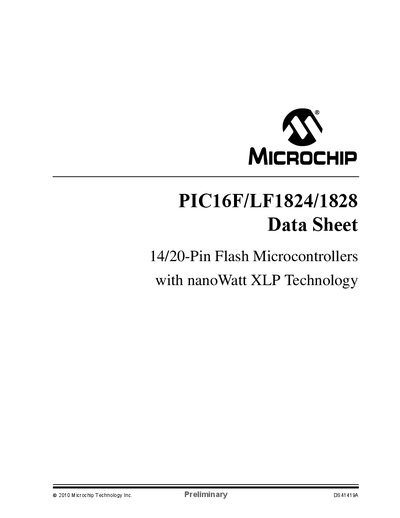

The Microchip PIC16F/LF1824/1828 data sheet provides specifications, pin configurations, and electrical characteristics for the 14/20‑pin flash…
The PIC16F/LF1824/1828 family are 14‑ and 20‑pin flash microcontrollers featuring a high‑performance RISC CPU, low‑power operation, and a range of analog and digital peripherals. They support 1.8 V‑5.5 V (PIC16F) or 1.8 V‑3.6 V (PIC16LF) supply voltages and include up to 4 KB program memory, 256 B data memory, and up to 17 I/O pins.
The datasheet details pin‑out diagrams for PDIP, SOIC, TSSOP and QFN packages, electrical ratings such as a 32 MHz maximum oscillator frequency, 20 nA sleep‑mode current, and 800 mW maximum power dissipation, as well as oscillator, comparator, DAC and LDO regulator specifications.
| Maximum oscillator frequency | 32 MHz |
|---|---|
| Program memory size | 4 KB |
| Data memory size | 256 B |
| Supply voltage (PIC16F) | 1.8 V to 5.5 V |
| Supply voltage (PIC16LF) | 1.8 V to 3.6 V |
| Sleep‑mode current | 20 nA |
| ADC resolution | 10‑bit |
| Maximum I/O pins | 17 I/O pins + 1 input‑only pin |
PIC16F1824/1828 operate from 1.8 V to 5.5 V, while the PIC16LF variants operate from 1.8 V to 3.6 V.
The microcontroller draws only 20 nA in sleep mode.
The device provides up to 17 I/O pins and one input‑only pin.
The maximum oscillator frequency is 32 MHz.
