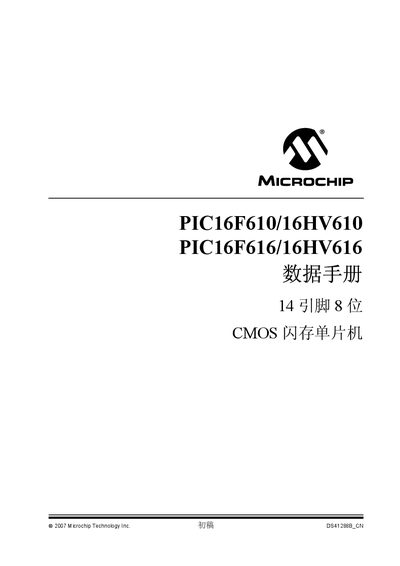

Data sheet for Microchip PIC16F610/616/16HV610/616 8‑bit CMOS flash microcontrollers covering features, specifications and pin information.
The Microchip PIC16F610/616/16HV610/616 series are 8‑bit CMOS flash microcontrollers available in 14‑pin PDIP, SOIC, TSSOP and 16‑pin QFN packages. The document provides a detailed description of the CPU core, memory architecture, oscillator options, I/O ports, timers, comparators, A/D converter and enhanced capture/compare/PWM modules.
Key sections include device overview, memory composition, oscillator module, I/O ports, timer modules, comparator and A/D modules, voltage regulator, CPU special functions, instruction set summary, development support, electrical specifications, DC/AC characteristics and package information. This manual is written in Chinese.
| Flash memory (PIC16F610) | 1024 words |
|---|---|
| Flash memory (PIC16F616) | 2048 words |
| Operating voltage range | 2.0 V to 5.5 V |
| Standby current (2.0 V) | Typical 50 nA |
| Maximum oscillator frequency | 20 MHz |
The devices operate from 2.0 V up to 5.5 V.
The PIC16F616 provides 2048 words of flash memory.
Typical standby current is 50 nA at 2.0 V.
