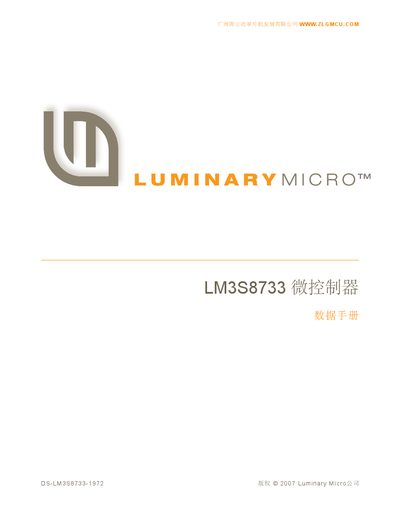

The LM3S8733 microcontroller datasheet from Luminary Micro provides detailed specifications, architecture, and register information.
The LM3S8733 is a 32‑bit microcontroller based on an ARM Cortex‑M3 core. The datasheet describes its product features, target applications, and provides an advanced block diagram of the device architecture. It covers the core, memory map, interrupt controller, and a wide range of peripherals such as GPIO, timers, ADC, UART, I2C, CAN, and Ethernet.
The document also includes detailed electrical characteristics, package information (100‑pin LQFP), ordering details, and a quick‑reference register table. Contact and support information for Luminary Micro and its Chinese distributor are provided at the end of the file. This manual is written in Chinese.
| Processor Core | ARM Cortex‑M3 |
|---|---|
| Package | 100‑pin LQFP |
It uses an ARM Cortex‑M3 core.
The device is offered in a 100‑pin LQFP package.
