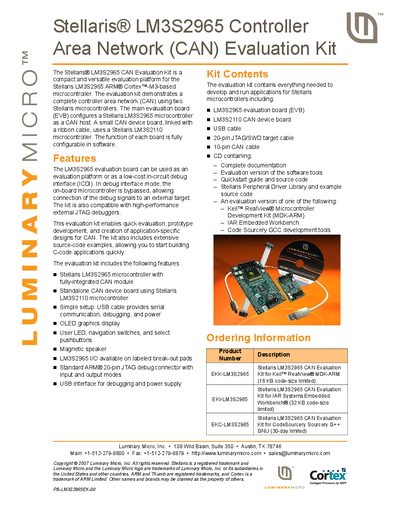

This is a product manual for the Stellaris LM3S2965 CAN evaluation kit
The Stellaris LM3S2965 CAN Evaluation Kit is a compact platform that demonstrates a complete Controller Area Network using two Stellaris microcontrollers. The main evaluation board hosts a Stellaris LM3S2965 microcontroller with an integrated CAN module, while a small CAN device board uses a Stellaris LM3S2110 MCU.
The kit includes hardware features such as an OLED graphics display, user LED, navigation switches, push‑buttons, a magnetic speaker, and standard ARM 20‑pin JTAG and USB debugging interfaces. A CD provides documentation, source‑code examples, and evaluation versions of development tools (Keil MDK‑ARM, IAR Workbench, CodeSourcery GCC).
| Microcontroller | Stellaris LM3S2965 with integrated CAN |
|---|---|
| CAN device board MCU | Stellaris LM3S2110 |
| Debug connector | Standard ARM 20‑pin JTAG |
| USB interface | Debugging and power supply |
| Display | OLED graphics |
| User controls | LED, navigation switches, push‑buttons |
| Speaker | Magnetic |
| I/O breakout | Available on labeled pads |
The main evaluation board configures a Stellaris LM3S2965 microcontroller as a CAN host.
A CD supplies complete documentation, source‑code examples, and evaluation versions of Keil MDK‑ARM, IAR Workbench, and CodeSourcery GCC development tools.
