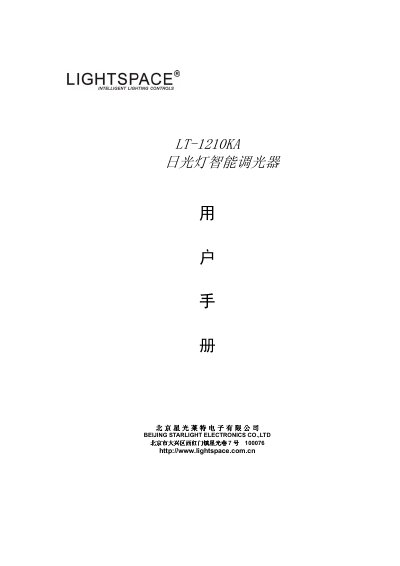

The LIGHTSPACE LT-1210KA user manual provides safety guidelines, installation instructions, wiring diagrams, and operation details for the intelligent…
This manual introduces safety precautions, unpacking steps, and basic operation for the LIGHTSPACE LT-1210KA intelligent fluorescent lamp dimmer, emphasizing that installation, commissioning and maintenance must be performed by qualified personnel to avoid high‑voltage hazards.
It details mechanical dimensions, power‑supply wiring, control‑signal connections (DMX512, LT‑NET/DALI via RS‑485), configuration options, and functional features such as 12 switchable channels, 128 preset scenes, fade‑time settings, and protection mechanisms. This manual is written in Chinese.
| Number of output channels | 12 |
|---|---|
| Channel current rating | 10 A |
| Control signal voltage range | 0 – 10 V |
| Maximum continuous load | 24 kW |
| Power per channel | 2 kW |
| Operating temperature range | 0 °C – 40 °C |
| Supply voltage range | 198 V – 264 V (230 V ± 14 %) |
| Physical dimensions (W × H × D) | 200 mm × 580 mm × 158 mm |
| Number of preset scenes | 128 |
| Number of zones | 128 |
| Fade time range | 1 – 100 seconds |
It provides 12 switchable output channels, each rated at 10 A.
The device can operate between 0 °C and 40 °C.
