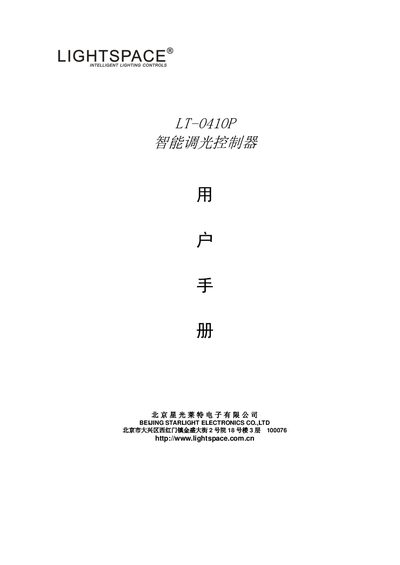

The Lightspace LT-0410P is a professional smart dimming controller with four 10 A channels, supporting DMX512 and LT‑NET protocols.
The LT‑0410P is a fully digital, micro‑processor‑controlled dimming controller designed for distributed lighting systems. It provides four independent dimming channels, each protected by a 10 A miniature circuit breaker and a bypass switch, and can store up to 128 scenes and 128 zones.
The unit accepts both DMX‑512 and LT‑NET control signals via dual RS‑485 interfaces, supplies a 12 V DC output for auxiliary equipment, and includes extensive safety features such as over‑current protection, automatic voltage limiting, and built‑in LEDs for power and communication status. Installation, wiring, and maintenance must be performed by qualified personnel. This manual is written in Chinese.
| Number of dimming channels | 4 |
|---|---|
| Maximum channel current | 10 A per channel |
| Maximum total load | 8 kW |
| Operating temperature range | 0 °C to 40 °C |
| Supply voltage | 230 V ± 14 % (198 V to 264 V) |
| Supported control protocols | DMX512 and LT‑NET |
| Output voltage for auxiliary equipment | 12 V / 0.2 A |
| Number of preset scenes | 128 |
| Number of zones | 128 |
| Fade time range | 1 s to 100 s |
It provides four independent dimming channels, each rated for 10 A.
The controller accepts both DMX512 and LT‑NET signals via its dual RS‑485 interfaces.
It can operate from 0 °C up to 40 °C.
