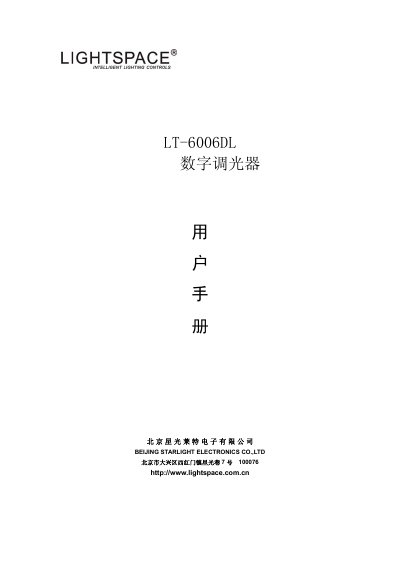

This manual introduces the features, technical parameters, usage instructions, dimmer parameter settings and other contents of LT-6006DL digital dimmer.
The Lightspace LT-6006DL is a six‑channel digital light dimmer that supports DMX512 input and provides up to 6 kW per channel (36 kW total). It features LCD display, lamp‑preheat, overload and short‑circuit protection, intelligent fan control and over‑temperature alarm, and complies with EN60950‑1 and EN60204‑1 safety standards.
The manual covers transport and storage conditions, safety precautions, cable connection, front‑ and rear‑panel descriptions, installation requirements, parameter settings, and troubleshooting methods. All installation, adjustment and maintenance work must be performed by qualified personnel with power disconnected. This manual is written in Chinese.
| Continuous Power per Channel | 6 kW |
|---|---|
| Maximum Total Power | 36 kW |
| Operating Temperature Range | 0 ℃ to 40 ℃ |
| Supply Voltage | 230 V ± 10 % |
| DC Component of Output Voltage | < 1 V |
Power must be disconnected and only qualified personnel should open the enclosure or perform repairs.
Each channel is protected by a micro‑circuit breaker (MCB) with a 6000 A breaking capacity, providing overload and short‑circuit protection.
Use copper conductors of at least 10 mm² cross‑section for the power cables.
