The LT-0610K intelligent switch controller is a product with 6 switch output channels, each channel has a 10A miniature circuit breaker and a bypass switch. It can be applied to distributed intelligent lighting control systems and can receive LT-NET, DALI, and DMX-512 signals. The product also features 128 preset scenes and 128 zones.

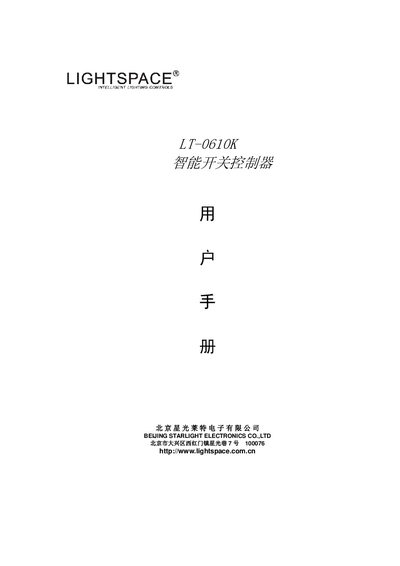

This user manual describes the LT-0610K intelligent switch controller, a professional lighting control device that supports DMX512, LT‑NET and DALI signals. It outlines safety precautions, unpacking, and the required professional installation procedures.
The guide details the controller’s six 10 A switch outputs, 12 V DC supply, scene‑preset capabilities, power requirements (three‑phase 400 V or single‑phase 230 V), and environmental limits, along with troubleshooting, protection features and wiring standards. This manual is written in Chinese.
| Switch outputs | 6 channels, 10 A each |
|---|---|
| DC output voltage | 12 V / 0.2 A |
| Preset scenes | 128 scenes |
| Operating temperature | 0 °C to 40 °C |
| Power supply (three‑phase) | 3NPE 400 V 50 Hz |
| Power supply (single‑phase) | 230 V, 60 A |
| Supported protocols | DMX512, LT‑NET, DALI |
It provides six switch outputs, each rated at 10 A.
The controller supports DMX512, LT‑NET and DALI signals.
The device operates from 0 °C up to 40 °C.
