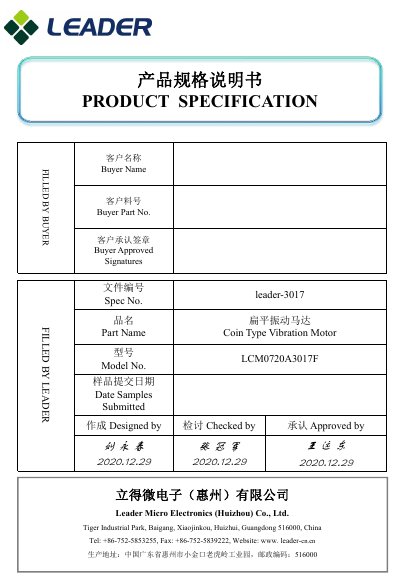

Leader Micro Electronics LCM0720A3017F Coin Type Vibration Motor Specification Sheet

This datasheet details the specifications, operating conditions, and reliability characteristics for the Leader Micro Electronics LCM0720A3017F coin type…

Brand: Leader Micro Electronics
Category: Motor
Document type: Datasheet
Language: Chinese
Pages: 12
File format: PDF
File size: 1.2 MB
Published: 16 October, 2026
Updated: 16 October, 2026
MD5 checksum: B7C77D0586368B5A3AC699403E3D5B53
PDF: Leader Micro Electronics LCM0720A3017F Coin Type Vibration Motor Specification Sheet PDF

About this manual

The document is a product specification sheet for the LCM0720A3017F Coin Type Vibration Motor manufactured by Leader Micro Electronics (Huizhou) Co., Ltd. It outlines the applicable scope, operating and testing conditions, and provides detailed initial electrical characteristics such as rated voltage, speed, and current. This manual is written in Chinese.

What's inside

Applicable Scope
Operating Conditions
Test Conditions
Initial Electrical Characteristics
Mechanical Characteristics
Reliability Characteristics
Standard Measuring Method
Caution in Use
Environmental Management Materials

Specifications

Rated Voltage	3.0V DC
Operating Voltage Range	2.7~3.3V DC
Rated Speed	13000±3000rpm
Rated Current	≤85mA
Starting Voltage	≤2.5V DC
Insulation Resistance	≥10MΩ

Frequently asked questions

What is the operating environment temperature range?

The motor operates in an environment of -20 to +60°C with 65±20% RH.

What is the maximum starting voltage?

The motor starts with a voltage of 2.5V DC or less.
