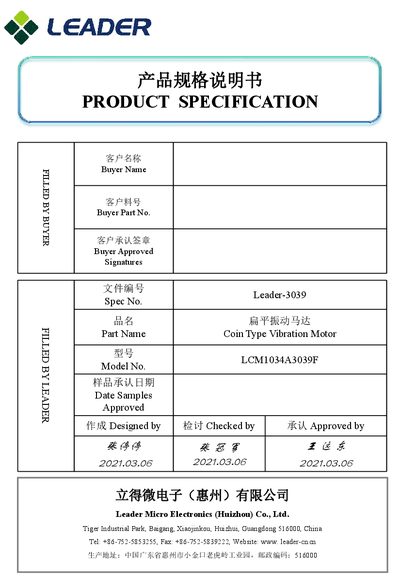

Leader Micro Electronics LCM1034A3039F Coin Type Vibration Motor Specification Sheet

This datasheet details the specifications, operating conditions, mechanical characteristics, and reliability tests for the LCM1034A3039F coin type vibration…

Brand: Leader Micro Electronics
Category: Other Electronics
Document type: Datasheet
Language: Chinese
Pages: 12
File format: PDF
File size: 1.3 MB
Published: 13 October, 2026
Updated: 13 October, 2026
MD5 checksum: 8B269A44B6CADD1EE87A8237F2E2E548
PDF: Leader Micro Electronics LCM1034A3039F Coin Type Vibration Motor Specification Sheet PDF

About this manual

This document is a product specification sheet for the LCM1034A3039F coin type vibration motor manufactured by Leader Micro Electronics. It outlines the applicable scope, operating and testing conditions, and initial electrical characteristics such as rated voltage, speed, and current. This manual is written in Chinese.

What's inside

Applicable Scope
Operating Conditions
Test Conditions
Initial Electrical Characteristics
Mechanical Characteristics
Reliability Characteristics
Standard Measuring Method
Caution in Use
Environmental Management Materials
Packaging

Specifications

Rated Voltage	3.0V DC
Operating Voltage Range	2.7~3.3V DC
Rated Speed	10000rpm Min
Rated Current	80 mA Max
Starting Voltage	2.3V DC Max
Insulation Resistance	10MΩ Min
Terminal Resistance (Parallel)	15Ω±15%
Mechanical Noise	≤50dB (A)

Frequently asked questions

What is the rated voltage for this motor?

The rated voltage is 3.0V DC.

What is the minimum rated speed?

The minimum rated speed is 10000rpm.

What is the maximum starting voltage?

The maximum starting voltage is 2.3V DC.
