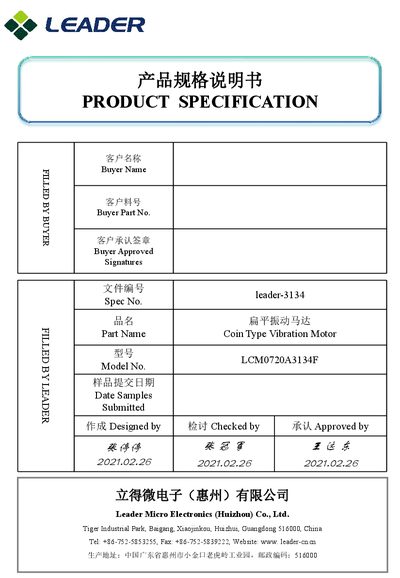

Leader Micro Electronics LCM0720A3134F Coin Type Vibration Motor Specification

This datasheet provides technical specifications, operating conditions, and reliability characteristics for the Leader Micro Electronics LCM0720A3134F coin…

Brand: Leader Micro Electronics
Category: Motor
Document type: Datasheet
Language: Chinese
Pages: 12
File format: PDF
File size: 1.2 MB
Published: 15 October, 2026
Updated: 15 October, 2026
MD5 checksum: A0B528AC6F9F2EE1DFA890E074353E9F
PDF: Leader Micro Electronics LCM0720A3134F Coin Type Vibration Motor Specification PDF

About this manual

This document is a product specification sheet for the Leader Micro Electronics (Huizhou) Co., Ltd. Coin Type Vibration Motor, model LCM0720A3134F. It details the applicable scope, operating conditions, and initial electrical characteristics such as rated voltage, speed, and current. This manual is written in Chinese.

What's inside

Applicable Scope
Operating Conditions
Initial Electrical Characteristics
Mechanical Characteristics
Reliability Characteristics
Standard Measuring Method
Cautions in Use
Characteristics Graph
Environmental Management Materials
Packaging

Specifications

Rated Voltage	3.0V DC
Operating Voltage Range	2.7~3.3V DC
Rated Speed	9000 Min rpm
Rated Current	≤85mA
Starting Voltage	≤2.5V DC
Terminal Resistance (Single Phase)	35Ω±15%
Mechanical Noise	≤50dB (A)
Life (Test Cycles)	35,000 cycles

Frequently asked questions

What is the rated voltage for this motor?

The rated voltage is 3.0V DC.

What is the minimum rated speed?

The minimum rated speed is 9000 rpm.

What is the maximum starting voltage?

The maximum starting voltage is 2.5V DC.

How many test cycles are required for the life test?

The life test requires 35,000 cycles.
