M-2005/2006 Digital AC/DC Mini Clamp Meter can measure AC current up to 200A, as well as DC voltage and resistance.

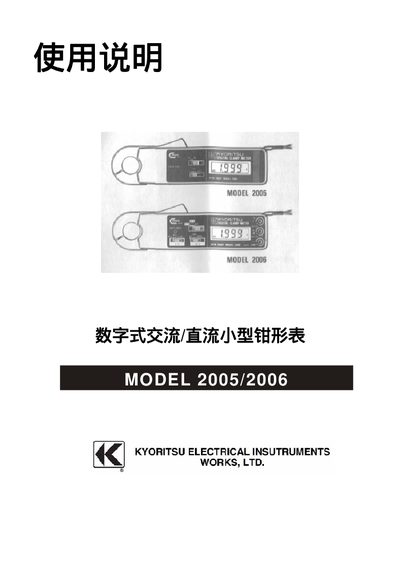

This manual covers the KYORITSU 2005/2006 digital clamp meter, describing its features, safe handling, and step‑by‑step operation. It includes details on measurement ranges, battery replacement, and accessories.
The document also lists technical specifications such as current, voltage, resistance, and frequency ranges, and provides troubleshooting tips and maintenance procedures to ensure accurate measurements.
| Current measurement range (low) | 0‑19.99 A |
|---|---|
| Current measurement range (high) | 0‑199.9 A |
| Voltage measurement range (low) | 0‑1.999 V |
| Voltage measurement range (mid) | 2‑19.99 V |
| Voltage measurement range (high) | 20‑199.9 V |
| Voltage measurement range (max) | 200‑500 V |
| Frequency response | 40 Hz – 1 kHz |
| AC/DC voltage capability | 500 V AC/DC |
It can measure currents from 0 to 19.99 A.
It can measure currents up to 199.9 A.
It operates from 40 Hz to 1 kHz.
