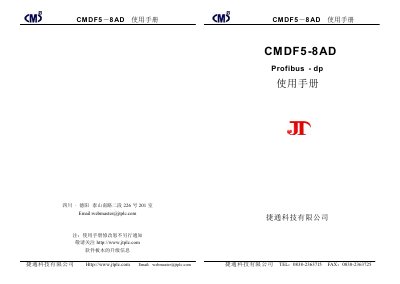

The JTPLC CMDF5-8AD manual provides specifications, wiring, configuration and operation instructions for the 8‑channel Profibus‑DP analog input module.
This manual describes the CMDF5-8AD analog input module, an 8‑channel device that supports 12‑bit resolution and multiple input ranges (0‑5 V, 0‑20 mA, 1‑5 V, 4‑20 mA). It details power requirements, isolated communication, and LED status indicators.
Installation, wiring diagrams, parameter settings, and Profibus‑DP communication options (9.6 kbps to 12 Mbps) are covered, along with troubleshooting information such as error codes and GSD file handling for integration with Siemens STEP 7. This manual is written in Chinese.
| Supported Input Ranges | 0‑5 V, 0‑20 mA, 1‑5 V, 4‑20 mA |
|---|---|
| Power Supply | 24 V DC (9‑30 V DC range) |
| Profibus DP Speed | 9.6 kbps – 12 Mbps |
| Maximum Profibus Speed | 12 Mbps |
It supports 0‑5 V, 0‑20 mA, 1‑5 V and 4‑20 mA input types.
The module operates from a 24 V DC supply and accepts a range of 9‑30 V DC.
Supported speeds range from 9.6 kbps up to 12 Mbps.
