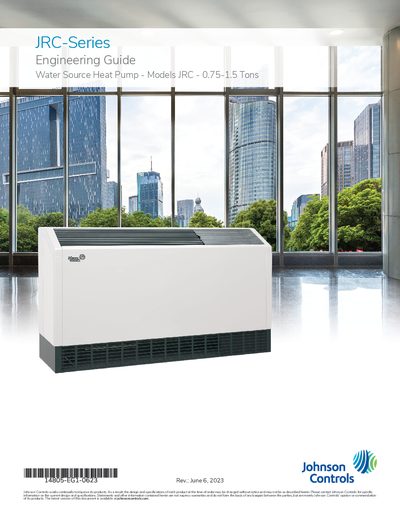

This engineering guide provides features, options, selection procedures, performance data, and technical specifications for the Johnson Controls JRC-Series…
The Johnson Controls JRC-Series console unit provides a high efficiency WSHP "ductless" solution for spaces where individual, quiet control of the heating and cooling system is important. Available in sizes 3/4 ton (2.64 kW) through 1-1/2 tons (5.3 kW), the units use environmentally-friendly HFC-410A refrigerant and feature microprocessor controls with communicating start-up and commissioning capabilities.
| Capacity Range | 3/4 ton (2.64 kW) through 1-1/2 tons (5.3 kW) |
|---|---|
| Refrigerant | HFC-410A |
| Efficiency Standard | Exceeds ASHRAE 90.1 |
| Control Type | CXM2 microprocessor controls |
| Cabinet Material | Galvanized steel |
The JRC-Series uses HFC-410A, which is an environmentally-friendly zero ozone depletion refrigerant.
The units are available in sizes ranging from 3/4 ton (2.64 kW) through 1-1/2 tons (5.3 kW).
Yes, the JRC has an extended range refrigerant circuit capable of ground loop (geothermal) applications as well as water loop applications.
