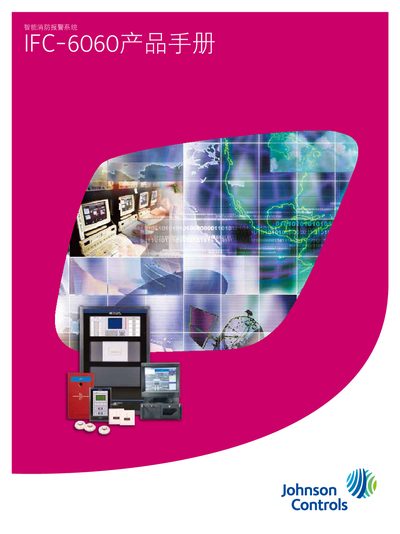

The manual describes the features, components, wiring and operation of the Johnson Controls IFC-6060 intelligent fire alarm system.
The IFC-6060 series is a 30‑loop intelligent fire alarm controller designed for factories, office buildings, hotels, data centers and other critical facilities. It supports up to 1 500 m loop cable length, 198 addressable devices per loop, and integrates with building management systems via MODBUS and BACnet.
The document provides detailed information on the controller, bus and multi‑line units, LCD floor displays, field devices such as smoke and temperature detectors, and external equipment like sounders and fire‑hose buttons. Installation, wiring, programming and maintenance procedures are covered, along with system wiring reference tables. This manual is written in Chinese.
| Number of loops | 30 |
|---|---|
| Addressable devices per loop | 198 |
| Maximum loop cable length | 1500 m |
| LCD display resolution | 320 × 240 pixels |
The controller supports up to 30 loops.
A loop cable can be installed up to 1 500 meters away.
Each loop can address up to 198 devices.
