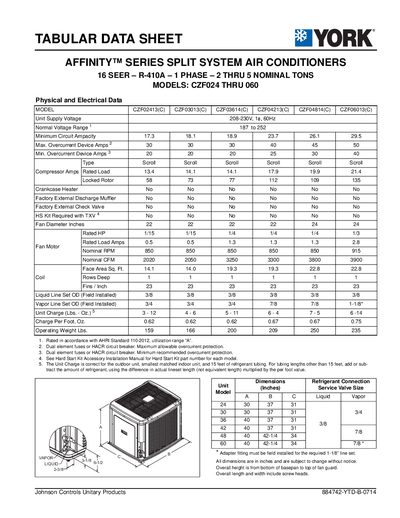

Technical data sheet for Johnson Controls Affinity™ Series split system air conditioners, covering 2‑5 nominal ton models and specifications.
This data sheet provides physical and electrical specifications for the Johnson Controls Affinity™ Series split system air conditioners, including voltage, amperage, fan motor details, coil face area, and refrigerant charge information for models ranging from 2 to 5 nominal tons. It also outlines procedures for refrigerant charging, system matching, and required accessories such as TXV kits and line‑set adapters.
The document lists model‑specific data such as supply voltage (208‑230 V, 1 φ, 60 Hz), minimum circuit ampacity, fan diameter, coil face area, and nominal airflow. Additional notes cover over‑current protection, hard‑start kit requirements, and guidelines for adjusting refrigerant charge based on line‑set length.
| Unit Supply Voltage | 208-230V, 1 φ, 60Hz |
|---|---|
| Minimum Circuit Ampacity (CZF02413(C)) | 17.3 A |
| Fan Diameter | 22 in (lower models), 24 in (higher models) |
| Coil Face Area (CZF02413(C)) | 14.1 sq ft |
A field‑installed 1‑1/8 inch line‑set adapter fitting must be used.
Total System Charge = Base Charge (as shipped) + charge adder for matched indoor unit + charge adder for actual lineset length.
Dual element fuses or HACR circuit breakers are required as the minimum and maximum over‑current protection.
