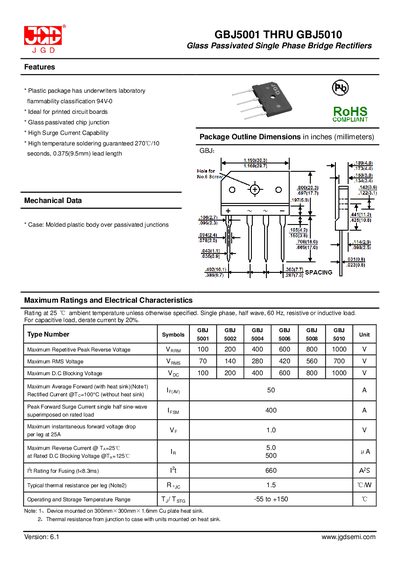

Datasheet for JGD GBJ5001‑GBJ5010 glass‑passivated single‑phase bridge rectifiers, detailing ratings, specifications, and ordering information.
The GBJ5001‑GBJ5010 series are glass‑passivated single‑phase bridge rectifiers offered in a molded plastic package suitable for PCB mounting. Features include high surge current capability, high temperature soldering, and UL flammability classification.
The datasheet lists maximum repetitive peak reverse voltage, RMS voltage, DC blocking voltage, forward current ratings, thermal resistance, and operating temperature range, together with ordering details (15 pcs per tube).
| Maximum Repetitive Peak Reverse Voltage (VRRM) | 100 V – 1000 V |
|---|---|
| Maximum RMS Voltage (VRMS) | 70 V – 700 V |
| Maximum DC Blocking Voltage (VDC) | 100 V – 1000 V |
| Forward Voltage Drop per Leg at 25 A (VF) | 1.0 V |
| Thermal Resistance per Leg (RθJC) | 1.5 °C/W |
| Operating Temperature Range | -55 °C to +150 °C |
| Package Type | Molded plastic body over passivated junctions |
| Units per Tube | 15 pcs |
The series covers VRRM ratings from 100 V for GBJ5001 up to 1000 V for GBJ5010.
They operate from –55 °C up to +150 °C.
Each tube contains 15 pieces.
