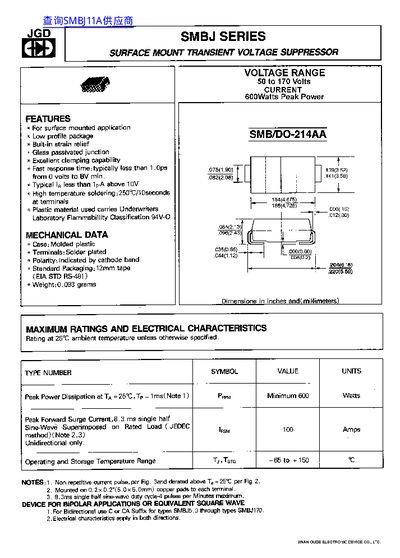

This document is a technical datasheet for the JGD SMBJ Series Surface Mount Transient Voltage Suppressors. It provides detailed specifications including peak power dissipation of 600 Watts and fast response times typically less than 1.0ps.
The datasheet includes comprehensive electrical characteristics tables covering various voltage ratings from 5.0V to 170V, as well as mechanical data for the SMB/DO-214AA package.
| Peak Power Dissipation | 600 Watts |
|---|---|
| Fast Response Time | typically less than 1.0ps |
| Operating Temperature Range | -65 to +150 C |
| Package Type | SMB/DO-214AA |
The peak forward surge current is 100 A.
Use C or CA suffix for types SMBJ5.0 through types SMBJ170.
