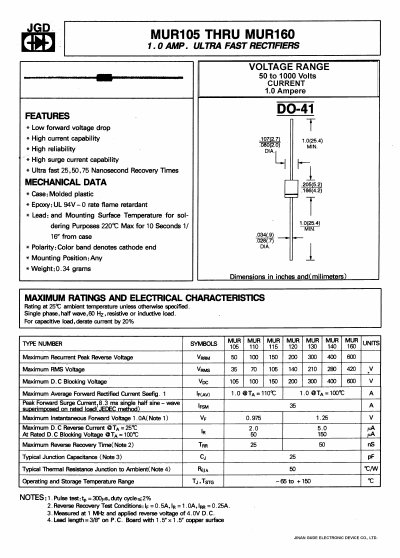

JGD MUR105 to MUR160 Ultra Fast Rectifiers Datasheet

Brand: JGD
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 156 KB
Published: 11 July, 2012
Updated: 30 September, 2023
MD5 checksum: 9DF80CA6FAE4CF5260B6A972F729406F
PDF: JGD MUR105 to MUR160 Ultra Fast Rectifiers Datasheet PDF

About this manual

This document provides technical specifications for the JGD MUR105 through MUR160 series of 1.0 Amp Ultra Fast Rectifiers. The devices feature a voltage range from 50 to 1000 Volts and offer ultra-fast recovery times between 25, 50, and 75 nanoseconds.

What's inside

Features
Mechanical Data
Maximum Ratings
Electrical Characteristics
Notes

Specifications

Current	1.0 Ampere
Voltage Range	50 to 1000 Volts
Recovery Time	25, 50, 75 Nanosecond
Case Material	Molded plastic
Polarity Indicator	Color band denotes cathode end

Frequently asked questions

What is the maximum average forward rectified current for these rectifiers?

The maximum average forward rectified current is rated at 1.0 Ampere.

What are the recovery times for these ultra fast rectifiers?

These rectifiers have recovery times of 25, 50, and 75 nanoseconds.

What is the maximum lead and mounting surface temperature for soldering?

The maximum temperature is 220°C for a duration of 10 seconds.
