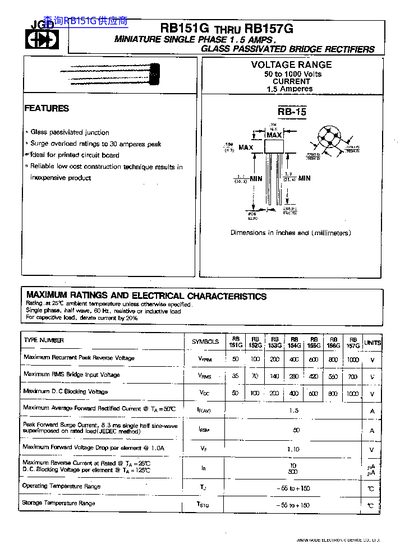

Jinan Gude Electronic Device Co., Ltd. RB151G through RB157G Bridge Rectifiers Datasheet

Brand: JGD
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 121 KB
Published: 05 June, 2012
Updated: 18 July, 2012
MD5 checksum: 7760FD259220228F840EFBD8D9FC5CCE
PDF: Jinan Gude Electronic Device Co., Ltd. RB151G through RB157G Bridge Rectifiers Datasheet PDF

About this manual

This document is a technical datasheet for the RB151G through RB157G series of miniature single phase glass passivated bridge rectifiers manufactured by Jinan Gude Electronic Device Co., Ltd. These components are designed for use in printed circuit board applications and feature reliable, low-cost construction.

What's inside

Features
Maximum Ratings
Electrical Characteristics
Derating Curves
Typical Forward Output Current

Specifications

Current Rating (IF(AV))	1.5 Amperes
Voltage Range	50 to 1000 Volts
Surge Overload Rating	30 amperes peak
Operating Temperature Range	-66 to +180 C

Frequently asked questions

What is the maximum average forward rectified current for these bridge rectifiers?

The maximum average forward rectified current is 1.5 Amperes.

How should the current rating be adjusted when using a capacitive load?

You must derate the current by 20% for capacitive loads.
