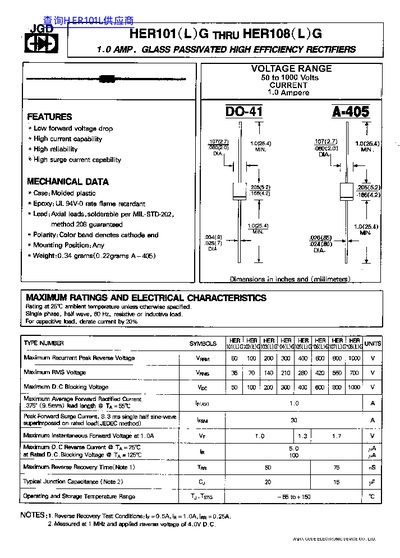

This document provides technical specifications for the HER101(L)G through HER108(L)G series of 1.0 Ampere glass passivated high efficiency rectifiers manufactured by Jinan Gude Electronic Device Co., Ltd. The devices are designed with low forward voltage drop and high current capability, featuring a molded plastic case that is UL 94V-0 flame retardant.
The datasheet details maximum ratings including reverse voltages ranging from 50 to 1000 Volts and includes electrical characteristics such as peak forward surge current, reverse recovery time, and junction capacitance. It also presents typical characteristic curves for test circuit diagrams, forward/reverse characteristics, and derating information.
| Forward Current (IF) | 1.0 Ampere |
|---|---|
| Voltage Range | 50 to 1000 Volts |
| Package Type | DO-41 A-405 |
| Peak Forward Surge Current | 20 A (8.3 ms) |
| Operating Temperature Range | -65 to +150 C |
The maximum average forward rectified current is rated at 1.0 A.
The device operates and stores in a range from -65 to +150 C.
The peak forward surge current is rated at 20 A under those conditions.
