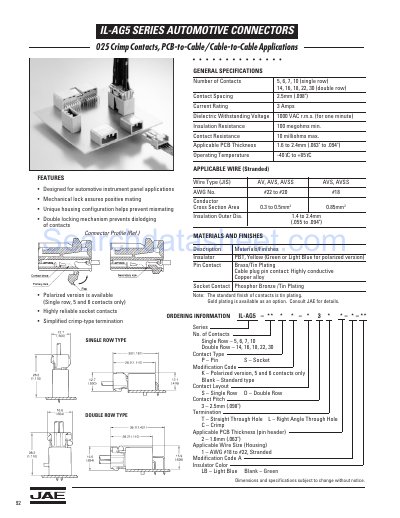

This document provides specifications for the JAE IL-AG5 series of automotive connectors, designed for instrument panel applications. It covers both single-row and double-row configurations with varying numbers of contacts and includes details on crimp contacts suitable for PCB-to-cable and cable-to-cable connections. The series supports various termination methods, including straight through-hole, right-angle through-hole, and crimp types.
Key features include a mechanical lock for positive mating, a unique housing configuration to prevent mismating, and a double locking mechanism to prevent contact dislodging. The datasheet details material compositions, such as PBT for the insulator and tin-plated brass or phosphor bronze for contacts, along with operating temperature ranges and electrical ratings.
| Contact Pitch | 2.5mm (.098") |
|---|---|
| Current Rating | 3 Amps |
| Dielectric Withstanding Voltage | 1000 VAC r.m.s. |
| Insulation Resistance | 100 megohms min. |
| Contact Resistance | 10 milliohms max. |
| Operating Temperature | -40 °C to +85°C |
| Applicable PCB Thickness | 1.6 to 2.4mm |
The available contact types are Pin (P) and Socket (S).
The applicable wire size is AWG #18 to #22, stranded.
