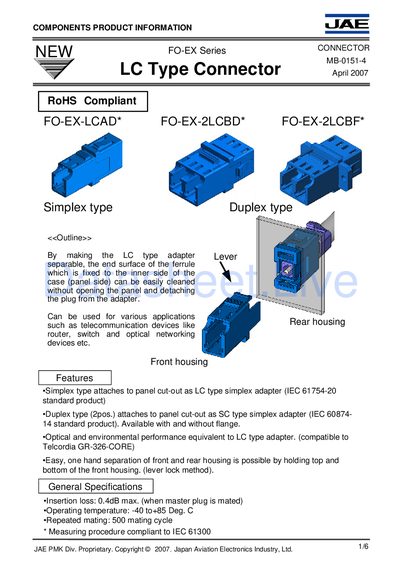

The JAE MB-0151-4 product leaflet provides specifications, materials, dimensions, and ordering details for the FO-EX series LC type optical connector.
The MB-0151-4 is an LC type optical connector from JAE's FO-EX series. It offers a separable adapter design that allows easy cleaning of the ferrule end surface without removing the plug, making it suitable for telecommunications, networking, and other optical applications.
The leaflet lists key performance data such as insertion loss, operating temperature range, and mating durability, as well as material specifications for the housing, sleeve, and dust cap. Dimensional drawings for both simplex and duplex panel cut‑outs are included, along with part numbers and ordering configurations.
| Insertion loss | 0.4 dB max |
|---|---|
| Operating temperature | -40 to +85 °C |
| Repeated mating cycles | 500 cycles |
| Split sleeve material | Phosphor bronze or Ceramic |
| Front housing material | Glass filled PBT |
| Rear housing material | Glass filled PBT |
| Simplex outer dimensions (panel cut‑out) | 1.75 × 1.55 mm (A), 11.8 × 11.7 mm (B), 7.2 × 7.1 mm (C) |
| RoHS compliance | Yes |
The insertion loss is specified as 0.4 dB maximum when the master plug is mated.
The connector is rated for 500 mating cycles.
The front housing is made of glass‑filled PBT.
Yes, the FO‑EX‑2LCBF version is RoHS compliant.
