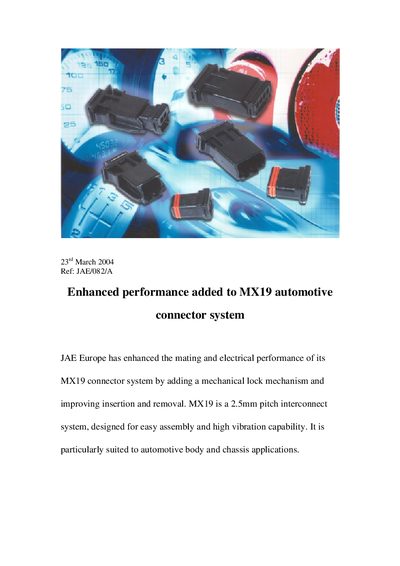

JAE MX19 connector system has a mechanical locking mechanism that improves mating and electrical performance. It is suitable for automotive body and chassis applications.
JAE Europe has upgraded the MX19 automotive connector system with a mechanical lock mechanism and improved insertion and removal performance. The 2.5 mm pitch interconnect is aimed at body and chassis applications where high vibration resistance is required.
The connectors are rated at SA, accept 20‑22 AWG wire gauges, and are offered with two or four contacts. They feature a rear‑cover grommet for water resistance, meet the JIS D 0203 S1 waterproof standard, and operate from –40 °C to +105 °C.
| Pitch | 2.5 mm |
|---|---|
| Rating | SA |
| Wire gauge | 20‑22 AWG |
| Number of contacts | 2 or 4 |
| Waterproof standard | JIS D 0203 S1 |
| Operating temperature | –40 °C to +105 °C |
JAE added a mechanical lock mechanism and improved insertion and removal performance.
They operate from –40 °C to +105 °C.
Yes, they meet the Japanese JIS D 0203 S1 waterproof standard.
