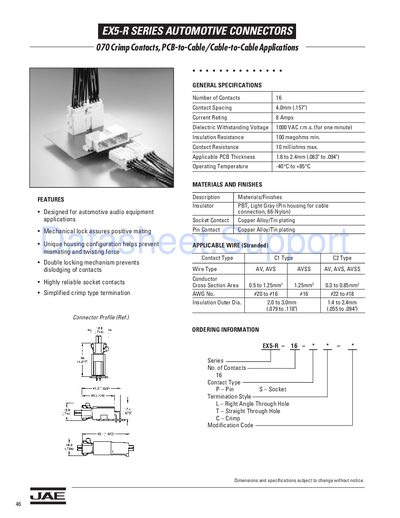

The JAE EX5-R Series automotive connector datasheet details specifications, features, and ordering information for 16‑contact PCB‑to‑cable connectors.
The EX5-R Series from JAE provides 16‑contact automotive connectors designed for PCB‑to‑cable and cable‑to‑cable applications, suitable for automotive audio equipment. The connectors feature a mechanical lock, double‑locking mechanism, and reliable socket contacts to prevent mismating and dislodging.
Key specifications include a 4.0 mm contact spacing, 8 A current rating, 1000 VAC dielectric withstand, and operation from –40 °C to +85 °C. Materials are PBT insulators with copper‑alloy/tin‑plated contacts, and a range of crimping tools are recommended for assembly.
| Number of Contacts | 16 |
|---|---|
| Contact Spacing | 4.0 mm |
| Current Rating | 8 A |
| Dielectric Withstanding Voltage | 1000 VAC rms (1 min) |
| Insulation Resistance | ≥100 MΩ |
| Contact Resistance | ≤10 mΩ |
| Applicable PCB Thickness | 1.6 – 2.4 mm |
| Operating Temperature | -40 °C to +85 °C |
| Insulator Material | PBT, Light Gray |
| Socket Contact Finish | Copper Alloy/Tin plating |
| Pin Contact Finish | Copper Alloy/Tin plating |
| Conductor Cross‑Section Area | 0.5 – 1.25 mm² |
| AWG Range | #20 to #16 |
| Recommended Hand Crimping Tool | CT160-3-EXPC1 |
| Recommended Semi‑Automatic Crimping Machine | CT350-2 type |
The connectors are rated for 8 Amps.
They can withstand 1000 VAC rms for one minute.
The connectors operate from –40 °C to +85 °C.
Hand crimping tool CT160‑3‑EXPC1 and semi‑automatic machine CT350‑2 type are recommended.
