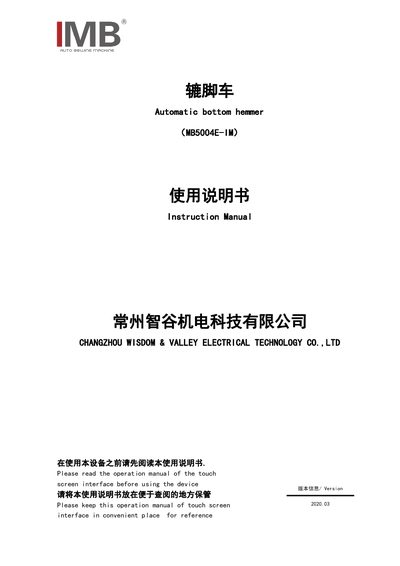

The IMB MB5004E-IM industrial sewing machine user manual provides safety guidelines, operation steps, adjustments, maintenance, and troubleshooting.
This manual introduces the IMB MB5004E-IM automatic sewing machine, covering basic device information, technical parameters, and safety precautions. It explains button functions, touchscreen interface, and detailed operating procedures for preparing, sewing, and adjusting the machine.
Additional sections describe debugging methods, accessory list, common problems with solutions, daily maintenance requirements, and the product protection statement. The document is intended for trained operators and service technicians to ensure safe and efficient use of the equipment. This manual is written in Chinese.
| Fastest sewing speed | 4000 rpm |
|---|---|
| Working voltage | 220 V |
| Working air pressure | 0.5 MPa |
| Needle spacing length | 2-5 mm |
| Hem width | 9-53 mm |
| Trouser leg circumference | 280-800 mm |
| Device dimensions | 950 L × 1000 W × 1300 H mm |
| Device weight | 165 kg |
Press the emergency stop button to stop the machine, then rotate the button to release it and click the "Reset" button on the touchscreen.
