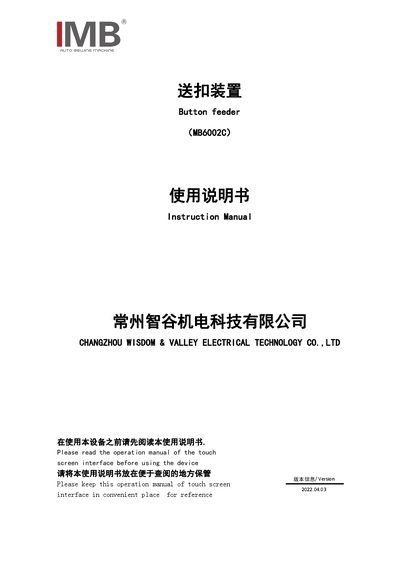

Instruction manual for the IMB MB6002C button feeder, covering setup, operation, safety, wiring and maintenance.
The IMB MB6002C button feeder is an accessory for industrial sewing machines. This manual provides basic information, technical parameters, safety precautions, button functions, operation steps, debugging methods, electrical wiring, optional accessories, and maintenance guidelines.
Users are guided through preparation, start‑up, button feeding modes, troubleshooting common issues, and routine care to ensure reliable performance and safety while operating the device. This manual is written in Chinese.
| Working voltage | 220 V |
|---|---|
| Working pressure | 0.5 MPa |
| Rated power | 65 W |
| Rated button speed | 13000-15000 pcs/8h |
| Dimensions (L×W×H) | 460×420×375 mm |
| Weight | 35 kg |
| Button diameter | 9‑20 mm |
| Button thickness | 1.8‑4 mm |
Check and adjust the measuring plate height, channel width, and the angle of the blowing plate to ensure proper material flow.
Inspect the hose connection and claw position, adjust hose length and ensure the claw is not deformed or rusty.
Increase the speed setting on the knob and verify that the wiring to the vibration plate is intact.
