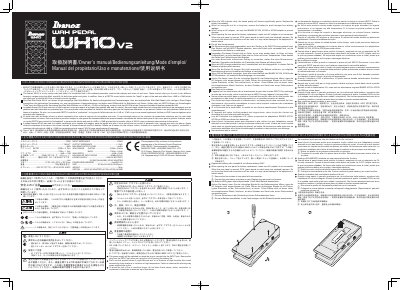

The Ibanez WH10 Wah Wah Pedal manual explains specifications, safety, battery replacement and operation instructions.
This manual provides an overview of the WH10 wah‑wah pedal, including its unique dual‑range switch for guitar and bass, a depth control that varies the effect from +6 dB to +12 dB, and the ability to use the pedal as a frequency‑boost equalizer. Safety precautions, power‑supply options, and detailed specifications are also covered.
The document contains step‑by‑step instructions for battery replacement, operation of the foot switch, dry output, depth control, range switch, input and output connections, and optional AC‑adapter use. It also lists the dimensions, weight, and recommended accessories for the pedal. This manual is written in Japanese.
| Input Impedance | 330 kΩ |
|---|---|
| Output Impedance | <1.2 kΩ |
| Maximum Output Level | +4 dBv |
| Wah Range (Guitar) | 350 Hz – 2.2 kHz |
| Wah Depth | +6 dB – +12 dB |
| Equivalent Input Noise | -95 dBv |
| Power Supply | One 9 V alkaline battery (S‑006P) or optional AC adapter |
| Current Consumption | 6 mA |
| Dimensions (W × H × D) | 87 mm × 60‑82 mm × 202 mm |
| Weight | 790 g (including battery) |
Remove the four rear‑panel screws, open the rear cover, disconnect the old 9 V battery, connect a new 9 V alkaline battery, and re‑assemble the panel.
Use the range switch labeled GTR for guitar (high‑range) or BASS for bass (low‑range) to select the desired frequency range.
