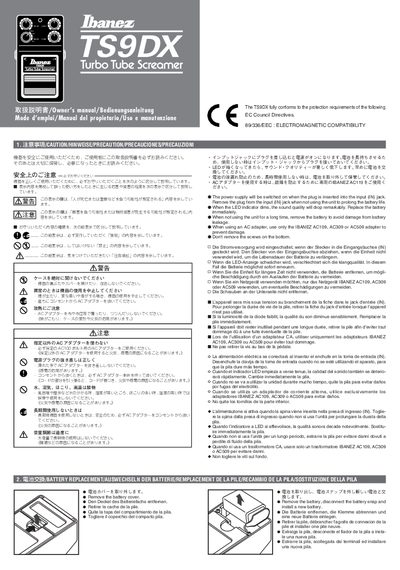

This document is the instruction manual for TS9DX, which introduces the usage methods and precautions of the product.
This manual covers the Ibanez TS9DX guitar pedal, detailing its safety precautions, battery replacement procedure, and power options. It explains how to power the unit with a 9 V battery or a compatible Ibanez AC adapter and describes the function of each control knob and switch.
The document also includes a connecting diagram, specifications, and sample settings for the various distortion modes (Turbo, Hot, +, TS9). It provides guidance on adjusting an amplifier to achieve the desired tone and explains the indicator LED behavior for battery monitoring.
| Power supply | 9V battery (S-006P) or AC adapter AC109, AC309, AC509 |
|---|---|
| Power requirement | DC9V 8 mA |
| Size | 124 mm (D) × 74 mm (W) × 53 mm (H) |
| Weight | 570 g |
Only the Ibanez AC109, AC309, or AC509 adapters should be used.
When the LED indicator dims, it signals that the battery should be replaced.
