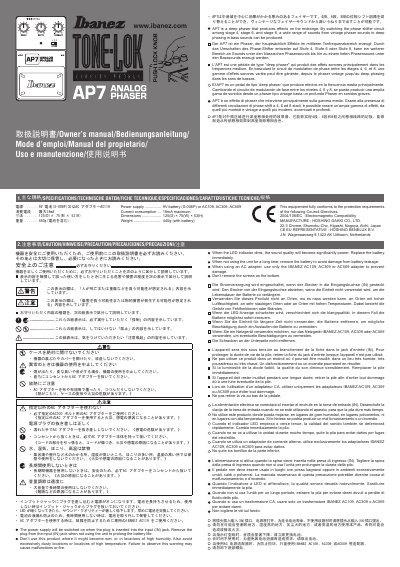

The Ibanez AP7 phaser pedal manual provides specifications, safety guidelines, battery replacement steps, and connection instructions.
This manual covers the AP7 deep phaser pedal, which offers 4, 6, or 8 stage phase‑shifting circuits for a range of vintage to deep phasing sounds. It includes specifications such as power requirements, dimensions, and weight, as well as safety cautions for proper use.
The guide explains how to replace the battery, connect the pedal to an amplifier, and operate the controls (Speed, Depth, Feedback, Stage, LED indicator, and Footswitch). It also lists the compatible Ibanez AC adapters (AC109, AC309, AC509) and provides sample settings for different sounds. This manual is written in Japanese.
| Maximum current consumption | 18 mA |
|---|---|
| Dimensions | 125 mm (D) × 75 mm (W) × 53 mm (H) |
| Phase‑shifter stages | 4, 6, or 8 |
Press the button to open the pedal, release the battery snap, replace the battery, and close the pedal.
Only the Ibanez AC109, AC309, or AC509 adapters should be used.
The input jack acts as the power switch; inserting the plug turns the unit on.
Turn off the amplifier or set its volume to minimum before making connections.
