User manual, introduces the function features and usage methods of TB100H electric guitar amplifier, including precautions before use, setting instructions and connection diagrams

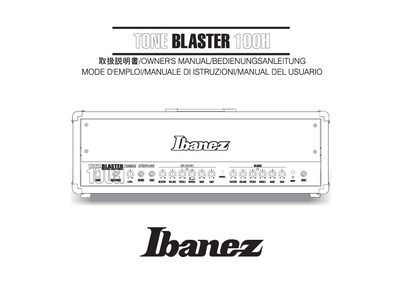

This manual introduces the Ibanez TB100H guitar amplifier, its included accessories, safety precautions, and how to install the power cable and speaker cabinet. It explains proper handling, power‑off procedures, and recommended environmental conditions.
The guide details the front‑panel controls, clean and overdrive channels, foot‑switch operation, EQ, boost, and effects loop settings. It also lists technical specifications such as output power, impedance, power consumption, equalization curves, weight and dimensions.
| Output Power | 100 W @8 Ω / 120 W @4 Ω |
|---|---|
| Input Impedance | 1 MΩ |
| Power Consumption | 90 W (CSA standard) |
| Headphones Output | 185 mW @32 Ω |
| Weight | 15.3 kg |
| Dimensions | 252 mm (H) × 715 mm (W) × 262 mm (D) |
The TB100H can be connected to a speaker system of 4 Ω impedance and 120 W or greater power handling, and a TB412A/TB412S 40 Ω (400 W rms) cabinet is ideal.
Connect the dual‑stereo cable to the foot switch, then plug its two leads into the rear‑panel FOOT SW jacks 1 and 2.
