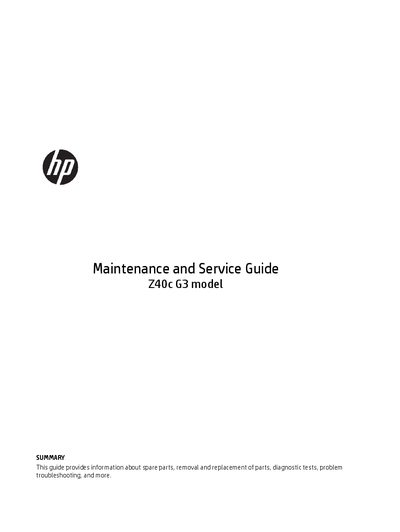

The HP Z40c G3 Monitor Service Manual provides safety instructions, parts catalog, disassembly, repair procedures, and troubleshooting.
This guide is intended for trained service personnel and covers important safety information, RoHS compliance, and general service procedures for the HP Z40c G3 monitor. It emphasizes proper handling, ESD precautions, and the need to disconnect power before opening the unit.
The manual includes a detailed illustrated parts catalog, step‑by‑step removal and replacement instructions for components such as the power board and connectors, function‑test procedures after repair, and a troubleshooting table for common issues like a blank screen or power‑button lockout.
| Screen size | 100.8 cm (39.7 in) curved diagonal |
|---|---|
| Resolution | 5120 × 2160 @ 60 Hz |
| Panel type | LCD with IPS (in‑plane switching) |
| Color gamut | sRGB and P3(D65) coverage |
| DisplayPort input | Video input (cable included in select regions) |
| HDMI input | Video input |
Disconnect the power cord from the outlet, work in a dry clean environment, use ESD precautions, and ensure the monitor is powered off before disassembly.
Check that the power cord is connected and the power button is pressed; if the button does not respond, hold it for 10 seconds to disable the lockout feature.
Perform the function‑test procedures listed in the manual, which include HDMI, DisplayPort, USB‑C Alt‑Mode, and USB hub tests to confirm image, sound, and peripheral operation.
