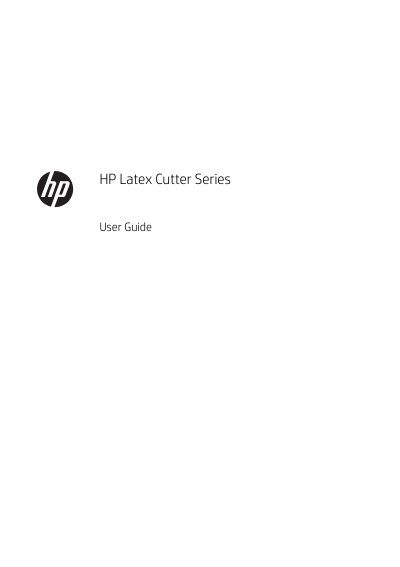

The HP Latex Cutter Series User Guide provides safety instructions, setup, operation, maintenance, troubleshooting and specifications for HP Latex cutters.
This user guide introduces the HP Latex Cutter Series, covering cutter models, safety precautions, main components, and basic operation such as turning the cutter on and off, connecting to a computer, and loading substrate. It also explains advanced features like the Optical Positioning System (OPOS) and HP Barcode for precise cutting.
Later sections detail system setup, maintenance tasks, troubleshooting tips, accessory options, and full technical specifications including dimensions, performance, environmental and electrical requirements. The guide includes safety warnings for electrical, fire, mechanical, and radiation hazards, as well as calibration procedures for substrate and cutting parameters.
| Height | 1145 mm (45.1 in) |
|---|---|
| Width | 1750 mm (68.9 in) |
| Depth | 680 mm (26.8 in) |
| Weight | 42 kg (92 lb) |
| Operating Temperature | 15 to 35 °C (59 to 95 °F) |
| Input Voltage | 100–120/200–240 V |
| Cut Speed | Up to 113 cm/s (44 in/s) diagonal |
| Accuracy | 0.2 % of movement or 0.25 mm (0.01 in) |
Use the power switch on the cutter; turn it off before servicing, during thunderstorms, or power failures as described in the safety precautions.
Read the safety precautions, ensure you have proper training, keep children away, follow electrical, fire, mechanical and radiation warnings, and use only the supplied power cord.
Run the calibrate media function; substrate calibration helps the sensor recognize markers as explained in the Calibrations section.
