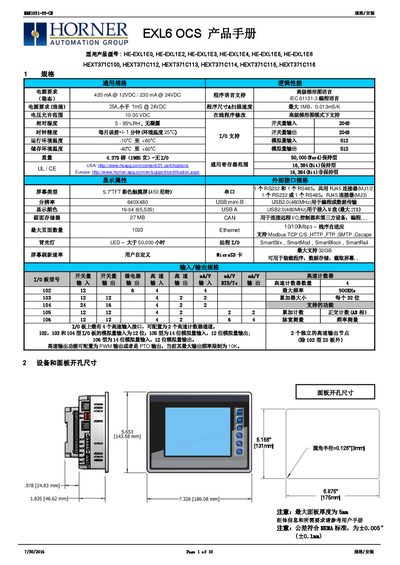

This manual provides specifications, installation steps, wiring details, I/O configuration and safety guidelines for the HEX 371C100 EXL6 OCS controller.
The document describes the HEX 371C100 EXL6 OCS controller, covering its electrical specifications, display features, communication interfaces and supported programming languages. It is intended for installers and technicians who need to set up, configure and maintain the device.
Key sections include power requirements, built‑in I/O board types, wiring diagrams, safety precautions for explosive‑hazard environments, and detailed register maps. Technical support contacts for North America and China are also provided. This manual is written in Chinese.
| Power consumption (12 VDC) | 420 mA |
|---|---|
| Power consumption (24 VDC) | 230 mA |
| Operating temperature range | -10 °C to +60 °C |
| Display size | 5.7 inches TFT color touch screen |
| Screen resolution | 640 × 480 |
| Ethernet speed | 10/100 Mbps |
| Maximum number of pages | 1023 |
| Number of switch inputs | 2048 |
| Number of analog inputs | 512 |
| Weight | 4.375 lb (1985 g) |
It draws 420 mA at 12 VDC and 230 mA at 24 VDC.
The controller provides 2048 switch inputs.
It supports Modbus TCP, HTTP, FTP, SMTP and Cscape.
