HE-XE105 / HEXE220C115 / HEXE220C015 is an XLE OCS product with 12 channels of switch DC input / 12 channels of switch DC output, 2 channels of high precision analog input / 2 channels of analog output.

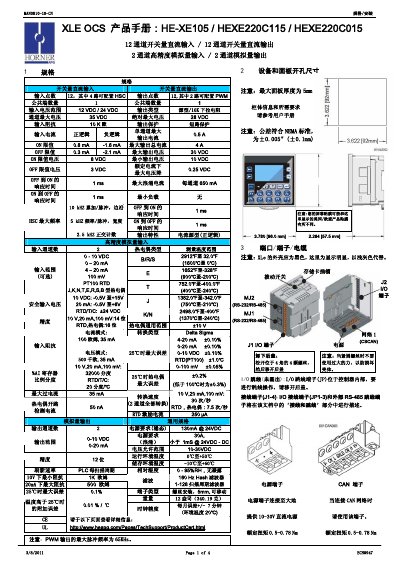

This manual describes the XLE OCS controller family, covering three models (HE‑XE105, HEXE220C115, HEXE220C015). It includes electrical specifications, I/O configuration, connector pin definitions, wiring diagrams, and safety instructions for installation and maintenance.
Key features include 12 digital I/O channels (4 configurable), 2 high‑precision analog I/O channels, configurable PWM outputs, CAN bus support, and optional Micro‑SD data logging. The document also outlines power requirements, environmental limits, and recommended wiring practices. This manual is written in Chinese.
| Digital input channels | 12 (4 configurable) |
|---|---|
| Digital output channels | 12 (2 configurable PWM) |
| Analog input channels | 2 |
| Supply voltage | 12 VDC / 24 VDC |
| Maximum output current per channel | 0.5 A |
| Maximum surge current per channel | 650 mA |
| Operating temperature range | 0 °C to +50 °C |
Use Belden 3084, 24 AWG (0.2 mm²) or a cable with equivalent specifications.
Set toggle switch 1 to ON for MJ1 and toggle switch 2 to ON for MJ2 to enable the respective RS‑485 termination resistors.
The PWM output can generate pulses up to 65 kHz.
