This document introduces the specifications and installation information of the MAN0886-4-CN digital input and output module, including the number of input points, output points, input voltage range, output type, maximum current, maximum voltage, etc. It also introduces the characteristics of the analog input module and the display device.

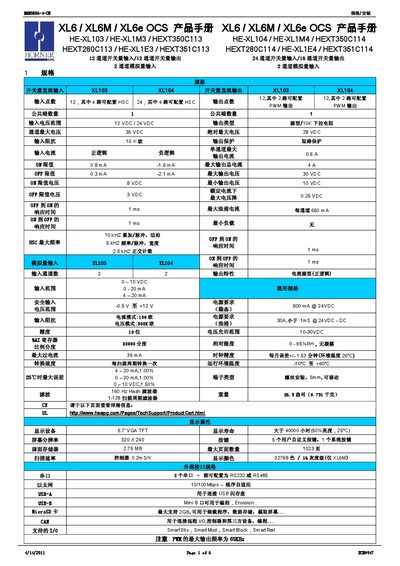

This manual describes the specifications and installation procedures for the Horner XL6 series OCS controllers (XL6, XL6M, XL6e). It covers digital and analog input/output counts, voltage ranges, display features, and external interfaces such as RS232/RS485, Ethernet, USB, CAN and MicroSD.
The document also includes detailed wiring diagrams, safety warnings for explosive‑class environments, register tables, and technical support contact information for both North America and China. This manual is written in Chinese.
| Output voltage range | 0‑10VDC |
|---|---|
| Maximum output current | 0.5 A |
| Display colors | 32768 colors / 16 gray levels |
