This document provides specifications and installation information for XLt OCS products. The products feature 12-channel DC input, 4-channel analog input, and 6-channel relay output.
The HE‑XT102/HEXT240C112/HEXT240C012 is an industrial controller with 12 digital DC input channels, 4 analog input channels and 6 relay output channels. It supports 12 VDC/24 VDC input voltage, CAN network communication, and RS‑232/RS‑485 serial ports.

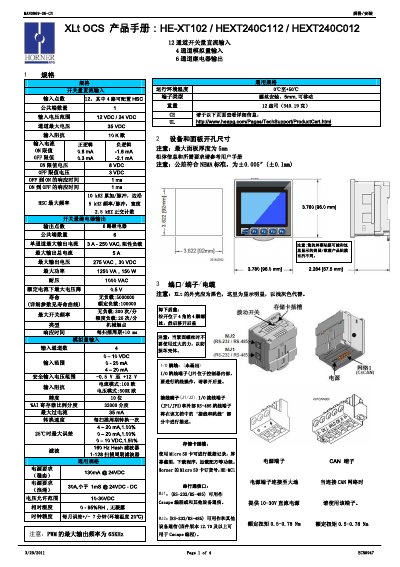

This manual details the controller's specifications, wiring and jumper settings, safety warnings, and technical support contacts. It includes wiring diagrams, pin definitions for the MJ1 and MJ2 ports, and guidance on configuring logic polarity and external switches. This manual is written in Chinese.
| Digital input channels | 12 |
|---|---|
| Analog input channels | 4 |
| Relay output channels | 6 |
| Input voltage range | 12 VDC / 24 VDC |
| Maximum relay output current per channel | 3 A |
| Maximum total relay output current | 5 A |
| Maximum output voltage | 275 VAC, 30 VDC |
| Power supply (steady state) | 130 mA @ 24 VDC |
| Operating temperature range | 0 ℃ to +50 ℃ |
The digital inputs accept either 12 VDC or 24 VDC.
