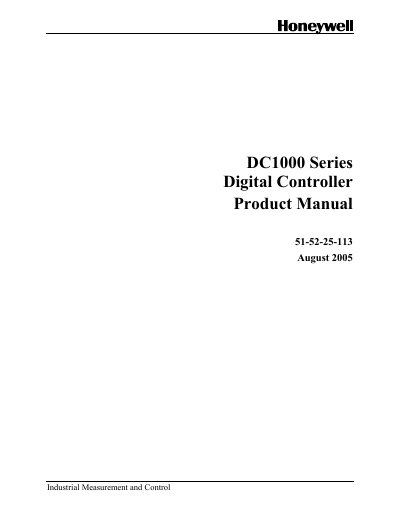

This manual covers the installation, configuration, and operation of Honeywell DC1000 series digital controllers including models DC1010 through DC1040.
The Honeywell DC1000 family consists of microprocessor-based controllers available in four different DIN formats: 1/16, 1/8, 3/16, and 1/4. These units are designed to regulate temperature and other process variables with a typical accuracy of ± 0.5% of span.
| Typical Accuracy | ± 0.5% of span |
|---|---|
| Ambient Temperature | up to 50°C (122°F) |
| Enclosure Rating | IP00 (Panel-mounted) |
The controllers come in four different formats: 1/16 DIN, 1/8 DIN, 3/16 DIN, and 1/4 DIN.
The series provides PID or ON/OFF Control, Hear/Cool Algorithms with 2 different PID sets, Motor Position Control without slidewire feedback, and Single/Three Phase Control.
