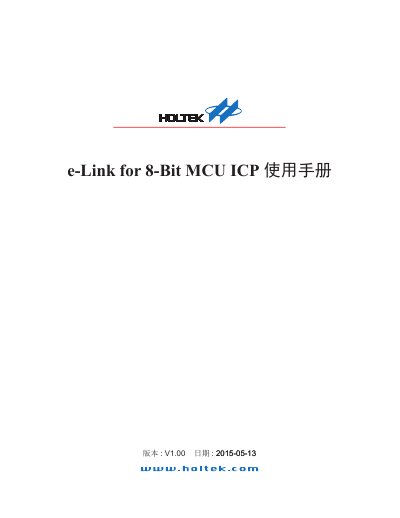

Holtek e-Link for 8-Bit MCU ICP User Manual

This manual describes the Holtek e-Link for 8-Bit MCU ICP, covering its features, usage workflow, and specifications for programming Flash MCUs, SPI Flash…

Brand: Holtek
Category: Other Electronics
Document type: User Manual
Language: Chinese
Pages: 10
File format: PDF
File size: 6.6 MB
Published: 23 October, 2026
Updated: 23 October, 2026
MD5 checksum: EDF6D91EEBEC244A55AB6FE21D22A6AA
PDF: Holtek e-Link for 8-Bit MCU ICP User Manual PDF

About this manual

The Holtek e-Link for 8-Bit MCU ICP is a third-generation simulator and programmer designed specifically for Flash microcontrollers. It supports both simulation debugging (OCDS) and in-circuit programming (ICP) functions. The device is part of the Holtek e-Link hardware series and features a standard appearance with specific pin configurations for connecting to target boards. This manual is written in Chinese.

What's inside

e-Link Introduction
e-Link Physical Diagram
ICP Functionality
Software Update
Programming Flash MCU
Programming SPI Flash
Programming EEPROM
Buttons and Indicators
Dimensions

Specifications

Supported MCU Type	Holtek 8-Bit Flash MCU
Supported Flash Types	Holtek 8-Bit Flash MCU, SPI Flash, EEPROM
Max Current Supply	300mA
Supported SPI Flash Series	MX25 series, SST25 series
Supported EEPROM Series	HT24 series

Frequently asked questions

What is the maximum current the e-Link can supply?

The ICP mode can provide a maximum current of 300mA at 5V and 3.3V.

Which SPI Flash models are supported?

The device currently supports the MX25 series and SST25 series SPI Flash models.
