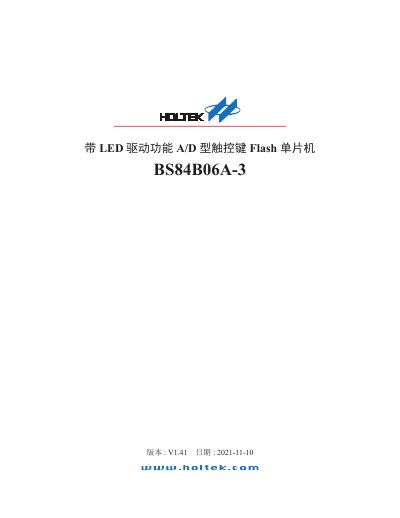

This datasheet details the specifications, features, and electrical characteristics of the Holtek BS84B06A-3 Flash MCU with integrated touch keys and LED drive.
The Holtek BS84B06A-3 is an 8-bit Flash MCU featuring a high-performance RISC core, integrated touch keys, and a multi-channel 12-bit A/D converter. It includes True EEPROM for non-volatile data storage and supports various operating modes to optimize power consumption.
The document provides comprehensive technical information including CPU and peripheral specifications, pin descriptions, electrical characteristics, register configurations, and application circuit examples. It covers development tools and instruction sets suitable for applications in electronic measuring instruments, home appliances, and electronic control tools. This manual is written in Chinese.
| Program Memory | 3K x 16 |
|---|---|
| RAM Data Memory | 288 x 8 |
| EEPROM Memory | 64 x 8 |
| A/D Converter Resolution | 12-bit |
| Operating Voltage (16MHz) | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Total Power Dissipation | 500mW |
| I/O Ports | 18 bidirectional |
The operating voltage range is 4.5V to 5.5V when the system frequency is 16MHz.
Yes, it features 6 fully integrated touch key functions that require no external components.
The MCU includes a multi-channel A/D converter with 12-bit resolution.
The maximum total power dissipation is 500mW.
