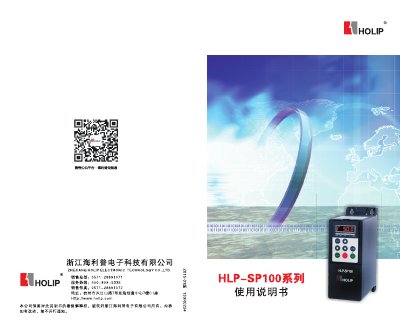

HLP SP100 Series Vector VFD User Manual

About this manual

The document is a comprehensive user guide for the HLP-SP100 series of multi-functional, high-performance vector-type variable frequency drives (VFDs). It provides detailed instructions on safety precautions, installation procedures, and wiring configurations to ensure safe operation. The manual explains how to use the control panel for parameter setting and monitoring various operational states. This manual is written in Chinese.

What's inside

• Safety Precautions
• Product Specifications
• Installation and Wiring
• Operation Panel Introduction
• Parameter Settings
• Quick Application Guide
• EMC Performance
• Fault Alarms and Troubleshooting

Frequently asked questions

What is the maximum operating temperature for the control cabinet when multiple units are installed?

If multiple inverters are installed in the same control cabinet, an external cooling fan must be added to keep the cabinet temperature below 40°C.

What is the maximum output frequency for V/F control mode?

The maximum output frequency for V/F control is 400Hz.

How many digital input terminals are available for models rated at 110kW or higher?

Models rated at 110kW or higher have 6 digital input terminals.
