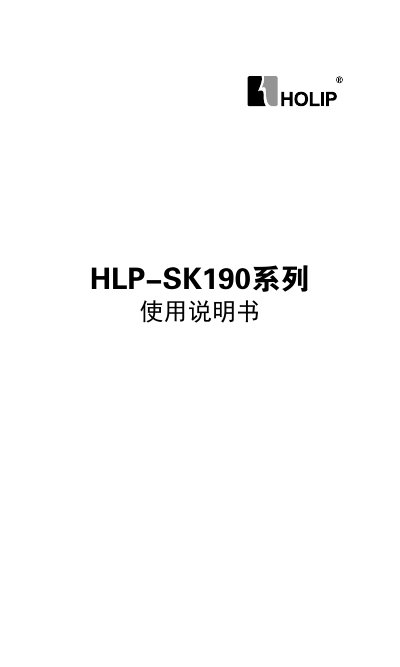

This manual provides installation, operation, parameter settings, and maintenance instructions for the HLP SK190 series vector inverters designed for air…
This user manual covers the HLP SK190 series vector inverters specifically designed for air compressor applications. It details safety precautions, mechanical and electrical installation requirements, and operation procedures including panel usage and parameter configuration. The guide includes a comprehensive list of functional parameters and troubleshooting steps for common faults. This manual is written in Chinese.
| Output Frequency | 0~400Hz (V/F), 0~200Hz (Vector) |
|---|---|
| Control Modes | V/F, Vector Control |
| Overload Capacity | 150% rated current (60s) |
| Carrier Frequency | 2 k~16 kHz |
Only professional electrical engineering personnel should install, debug, and maintain the inverter.
If multiple inverters are installed in the same cabinet, an external cooling fan must be used to keep the temperature below 40°C.
No, capacitors or lightning protection varistors are strictly prohibited on the output side as they can cause inverter failure.
