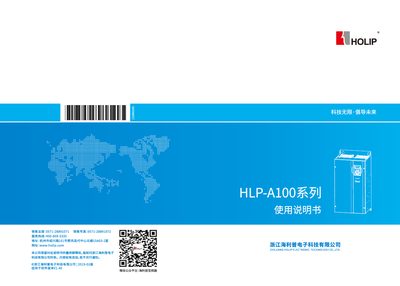

The HLP A100 series variable frequency drive user manual provides safety guidelines, installation steps, operation instructions, specifications, and…
This manual covers the safe use, mechanical and electrical installation, and operation of the HLP A100 series general‑purpose vector variable frequency drive. It includes detailed safety warnings, installation dimensions, wiring diagrams, and EMC guidance to help professional electrical engineers install and commission the inverter correctly.
The document also describes parameter settings, function tables, quick‑application examples, fault diagnostics, and routine maintenance. Appendices provide Modbus communication details and copy‑card usage for transferring parameters between drives. This manual is written in Chinese.
| Input Voltage (single/three‑phase) | 200~240V -20%~+10% (380~480V for three‑phase) |
|---|---|
| Output Frequency Range | 0~400 Hz |
| Overload Capability | 150 % (200 % for 1 s) |
Before applying power, ensure the correct input voltage, install the inverter in a safe environment away from heat and moisture, and have only qualified electrical engineers perform the installation.
Connect one end of a network cable to the RJ45 port on the back of the copy‑card and the other end to the inverter’s RJ45 port; the installation is straightforward.
