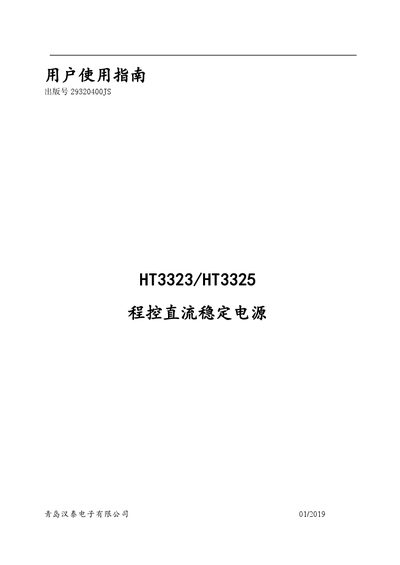

User guide for Hantek HT3323/HT3325 programmable DC power supply covering setup, operation, maintenance and specifications.
The HT3323/HT3325 is a programmable DC stabilized power supply with USB control, three independent output channels, and built‑in safety features such as over‑voltage and overload protection. It is intended for laboratory, educational and industrial use, providing precise voltage and current control.
The manual details preparation steps, front‑panel functions, programmable interface usage, routine maintenance, service support, and full technical specifications, helping users safely operate and maintain the device. This manual is written in Chinese.
| Input voltage | 220/230 V (198‑242 V) 50/60 Hz |
|---|---|
| Output channels | 3 independent channels (CH1, CH2, CH3) |
| CH1/CH2 voltage range | 0‑32 V |
| CH3 selectable voltages | 1.8 V / 2.5 V / 3.3 V / 5 V |
| Maximum output power (HT3323) | 500 W (670 VA) |
| Dimensions (HT3323) | 225 × 128 × 290 mm, 8 kg |
| Dimensions (HT3325) | 225 × 128 × 320 mm, 9 kg |
The unit requires 220 V or 230 V (range 198‑242 V) at 50 Hz or 60 Hz.
It provides three independent output channels: CH1, CH2, and CH3.
Press the 【lock】 key; the keyboard will be locked until unlocked.
Only a 250 V fuse of the specified style and rating may be used; temporary or short‑circuited fuses are not allowed.
